Designed as a cost-effective solution specifically for sound contractors, the ISA800ti is equipped with isolated 25, 70 and 100 volt outputs for distributed audio systems. Versatile loading options and a comprehensive feature set make the ISA Series a rugged, cost-effective power solution for any permanently installed sound system.
Features:
- Low-impedance and isolated 25, 70, and 100 volt outputs for distributed audio systems
- 25, 70, 100 volt, and low-impedance outputs available simultaneously

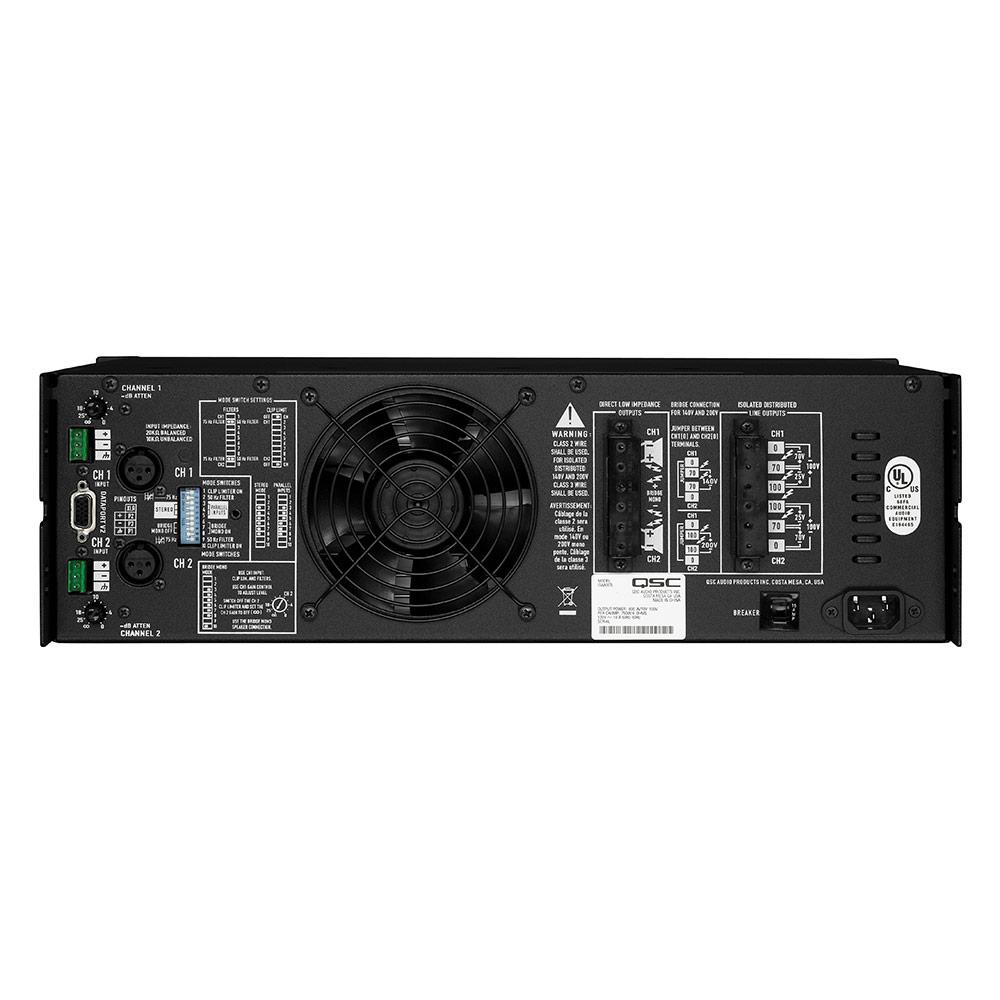

- Simple barrier strip connection determines output mode
- Rear panel gain controls for tamper resistant operation with 2 dB detents for quick and repeatable settings
- XLR and detachable Euro style input connectors
- DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
- Independent defeatable clip limiters for reduced distortion
- Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (50 Hz or 75 Hz)
- Class H complementary bipolar output circuitry reduces AC power draw and waste heat by 40%

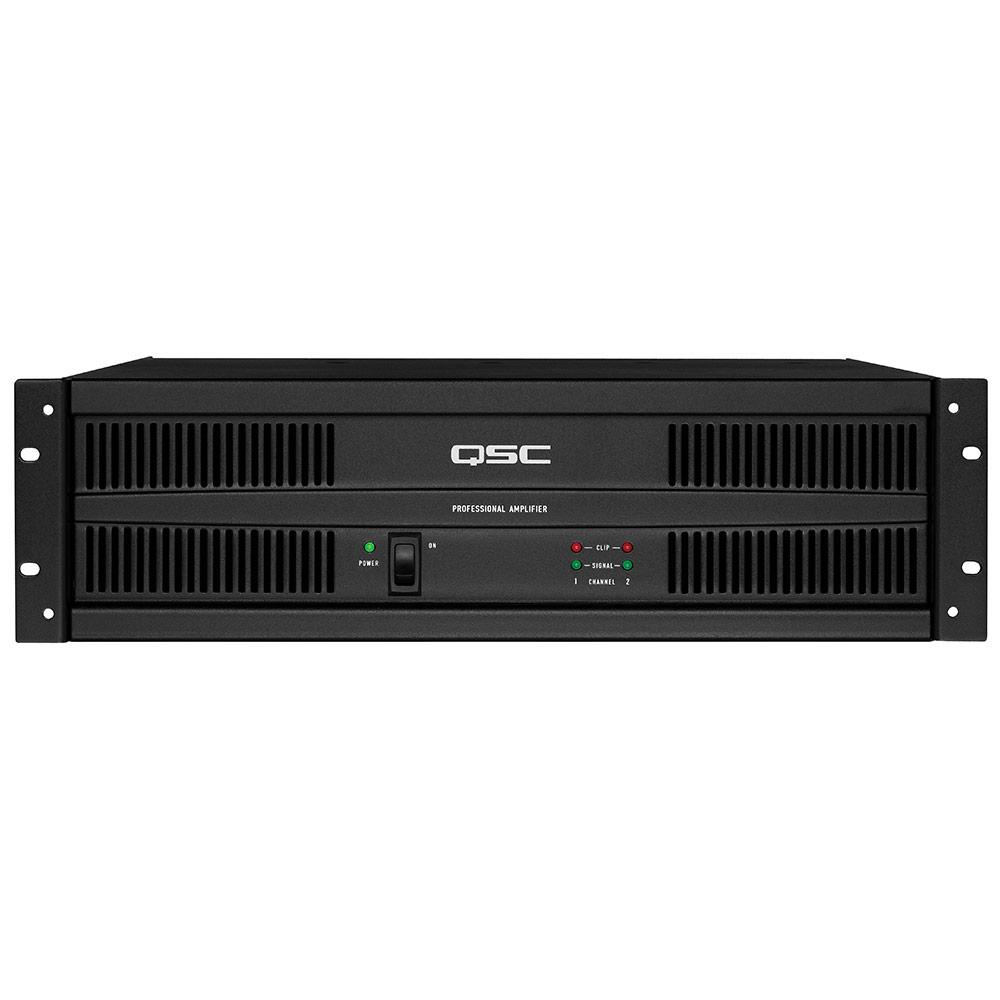

- Front panel indicators include power, signal, and clip
- Covered barrier strip output connectors for safety agency compliance
- Automatic variable-speed fan for quiet normal operation with maximum cooling on demand
- Rear-to-front air flow keeps equipment racks cool
- Stereo, Bridge, or Parallel operating modes
- Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
- 3-year warranty plus optional 3-year extended service contract
