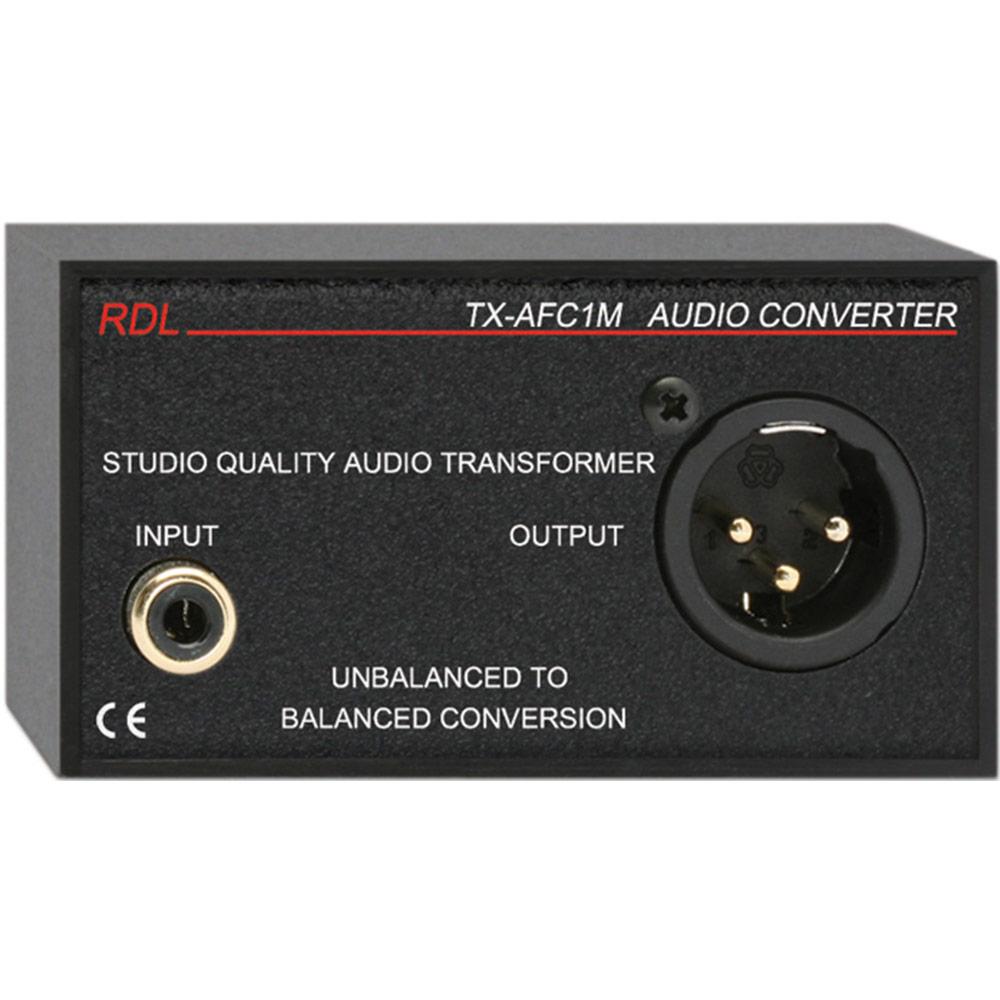

RDL TX-AFC1M Unbal. to Bal. Audio Transformer - Phono, XLR
RDL TX-AFC1M Unbal. to Bal. Audio Transformer - Phono, XLR

RDL TX-AFC1M Unbal. to Bal. Audio Transformer - Phono, XLR

£552.43 £524.81 Sale

    Features:
  • Studio Quality Bifilar Audio Transformer
  • Connectorized Audio Format Conversion
  • Galvanic Isolation with the Convenience of RDL TXs
  • Gold Contacts on Input and Output
  • Unbalanced to Balanced Conversion
  • Unity Gain
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
  • THD: < 0.06% (50 Hz to 20 kHz, -10 dBV input)
    0.0015% (Typ. 1 kHz, -10 dBV input)
  • Input: -10 dBV (+22 dBu max.), 10 k ohm Phono jack
  • Insertion Loss: 0.25 dB (20 ohm source 10 k ohm load)
  • Insertion Loss: 0.25 dB (20 ohm source 10 k ohm load)
