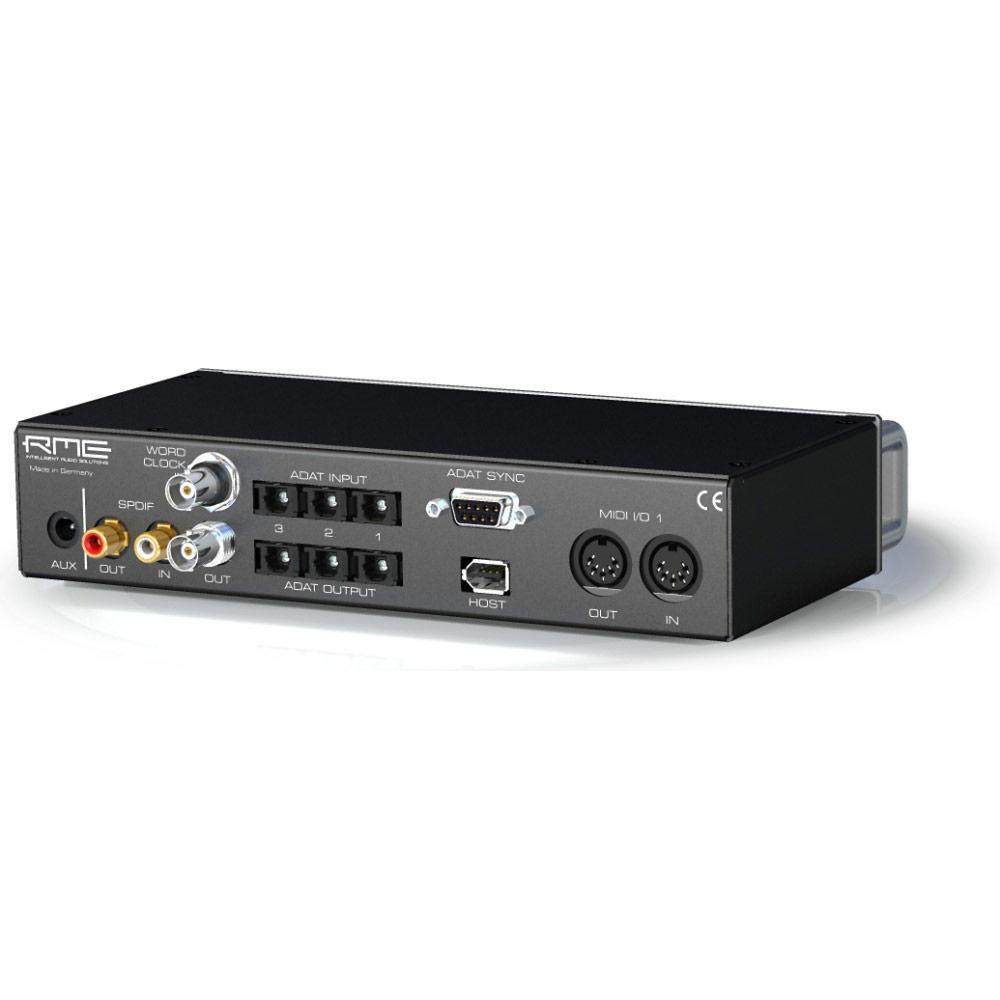

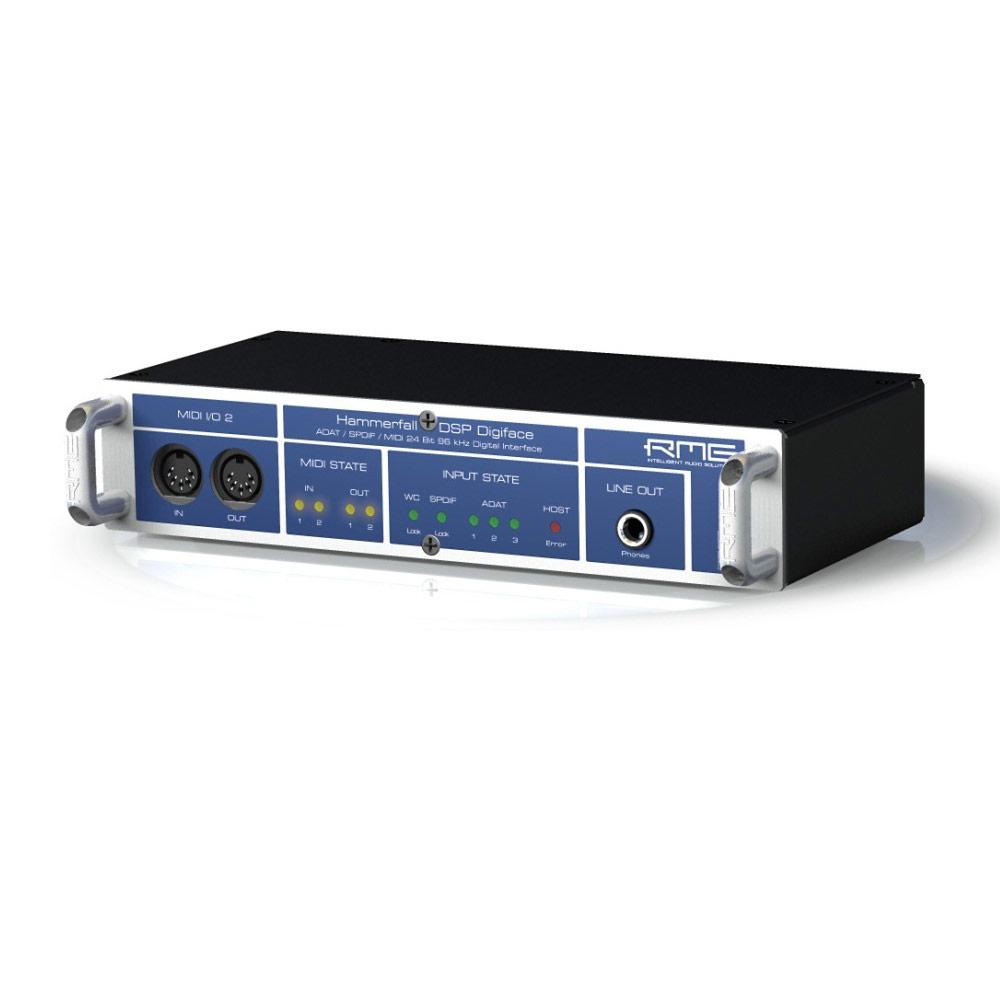

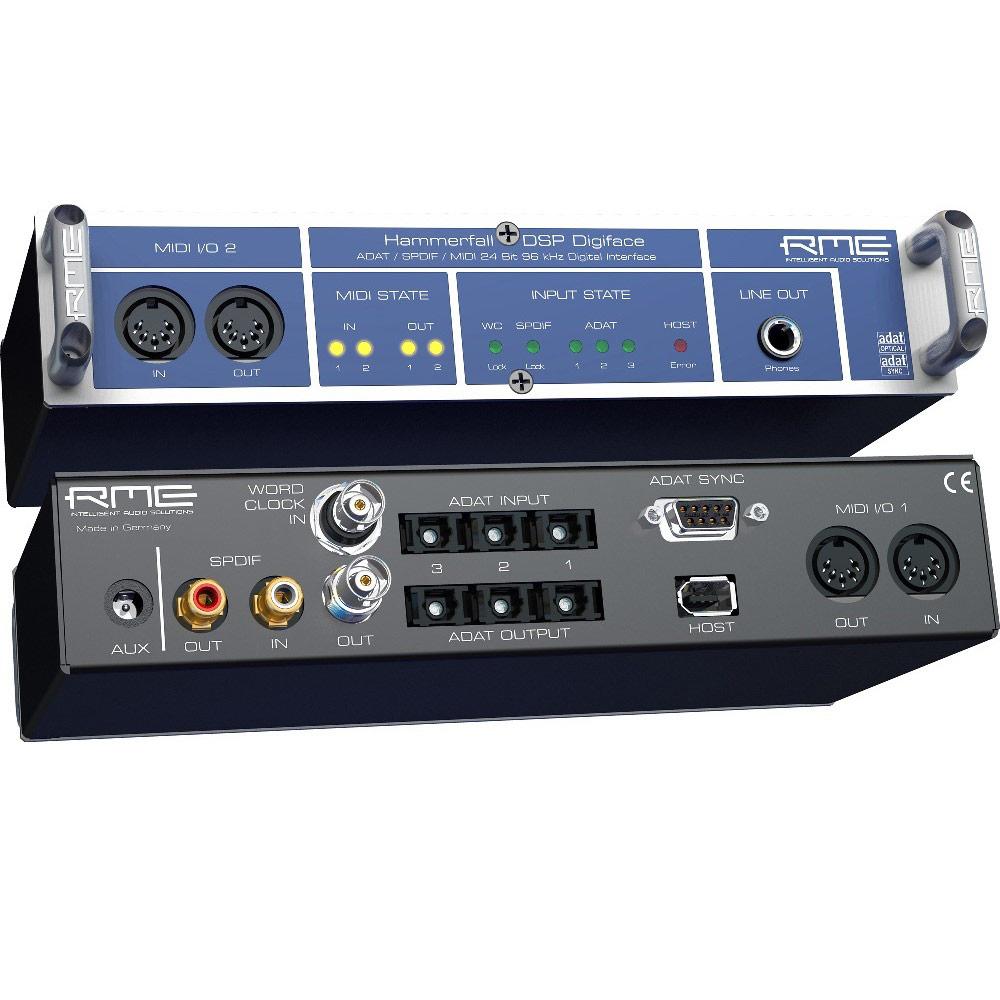

RME presents the Digiface, a highly extended version of the well-known PCI card Project Hammerfall (DIGI9652). Digiface offers 3 ADAT optical I/Os, ADAT-Sync In, SPDIF I/O and word clock I/O like its predecessor. On top, there are 2 MIDI I/Os and a separate analog line out. Thanks to its unique 'Zero CPU Load' technology Hammerfall DSP guarantees highest performance and lowest latency on both notebooks and desktops!
Features
- 3 x ADAT digital I/O, based on RME's reliable Bitclock PLL
- 1 x SPDIF digital I/O, based on RME's reliable DIGI96 technology
- 1 x ADAT Sync In (9-pin D-type) for sample accurate transfers
- 1 x Word clock I/O (BNC)
- 1 x analog Line/headphone output, separate output for independent submix
- 2 x MIDI I/O, 32 channels high-speed MIDI
- HDSP Meter Bridge: freely scalable level meters, peak- and RMS calculation directly in hardware
- TotalMix: 1456 channel mixer with 40 bit internal resolution
- S/MUX poured in hardware: 12 channels 24-Bit/96kHz for record and playback on ADAT optical
- DIGICheck, RMEs unique metering- and analyse tool
