TSL PAM1 MK2 Precision Audio Monitor (16 Channel with Dolby)

NEW Precision Audio monitoring unit, the natural evolution of the revolutionary PAM2-3G16 with external SDI monitor output and many other enhancements.

Features:

• SMTPE2020 metadata monitoring

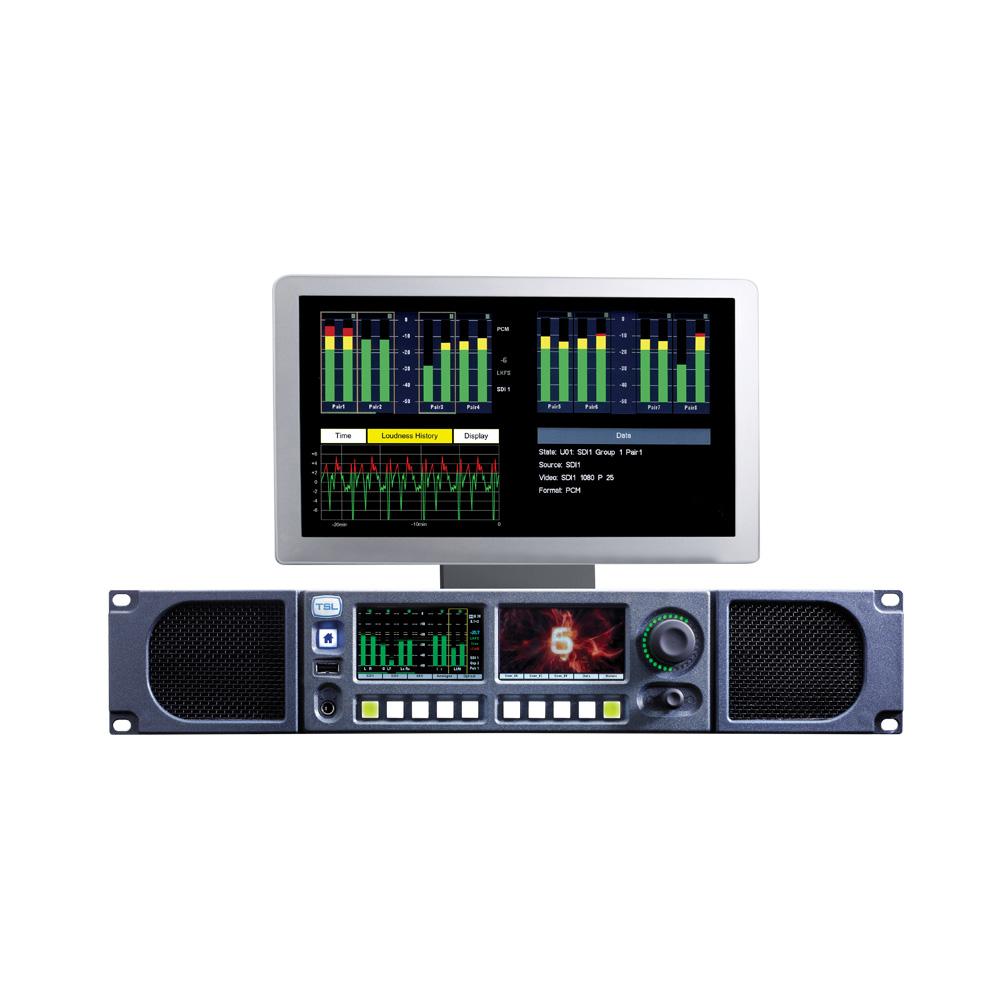

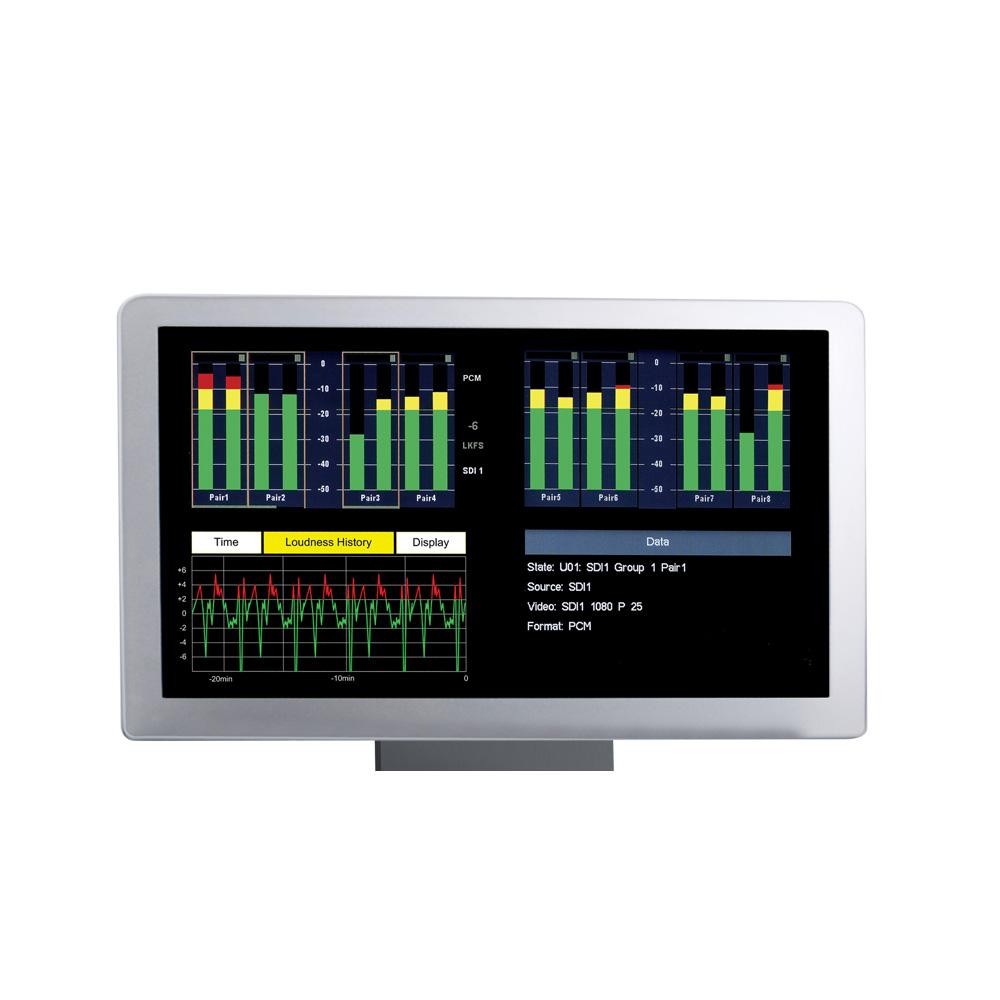

• SDI Connection for attaching external screen
• De-embedded audio monitoring from video (HD/SDI) with simultaneous display of up to sixteen channels (four groups)
• Dual auto-sensing,1080p (60, 59.94 and 50Hz), HD/SDI video inputs with reclocked and downconverted outputs
• Multi-standard Loudness level indication with histogram
• Optional Dolby E/AC-3/DD+ decoding from HD/SDI or AES
• Unique “Scroll to hear” function

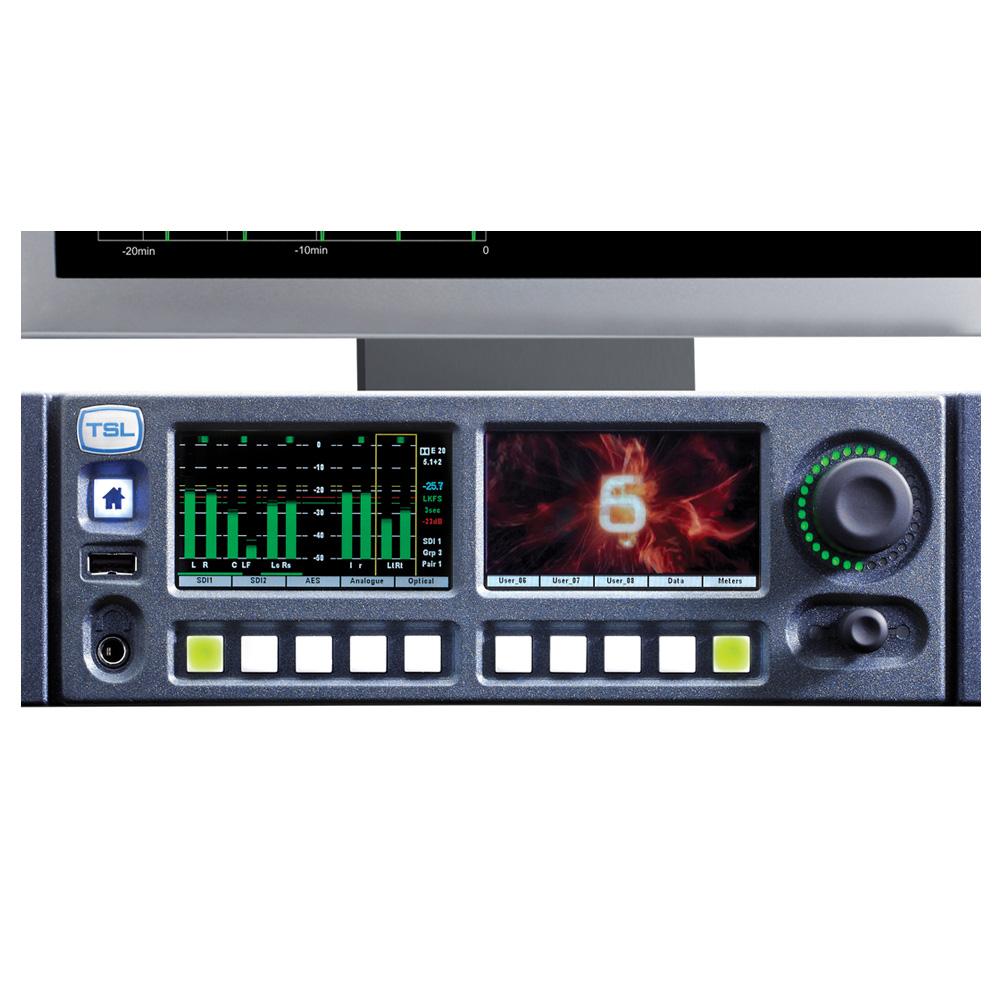

• Dual high resolution OLED screens for bargraphs, video, setup, data and metadata displays
• Choice of user selectable bargraph scales (VU, Extended VU, BBC PPM, EBU PPM, EBU Digital, Nordic, DIN)
• Conditional switching modes for SD/HD/Dolby/PCM auto configuration recall
• Assign matrix for non-standard order multichannel audio routing
• Audio montiroing delay for video monitoring synchronisation.
• Control of external stereo or surround sound loudspeaker systems
• Ethernet for networking & software upgrades.
• Dual 12V DC inputs

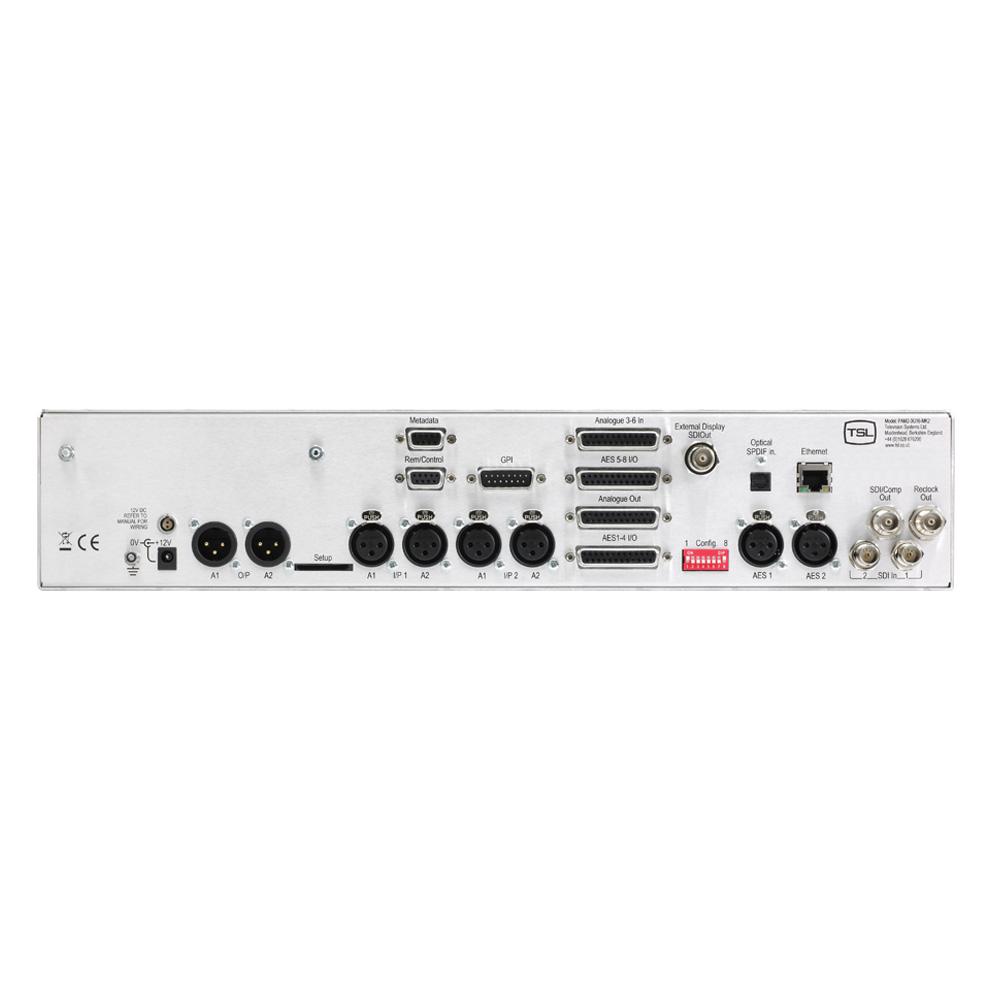

Audio Inputs:

• 16 channels from embedded HD/SDI
• 8 x pairs of AES/EBU inputs – balanced or unbalanced
• TOSLINK optical input
• 6 x balanced stereo analogue inputs

Audio Outputs:

• 8 x balanced fixed or variable analogue outputs
• Stereo variable analogue outputs
• 8 x pairs of AES/EBU fixed or variable outputs – balanced or unbalanced
